The ramp of low bed trailers is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.
The main beam of low bed trailers is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the lowbed trailers made of Q345 steel.

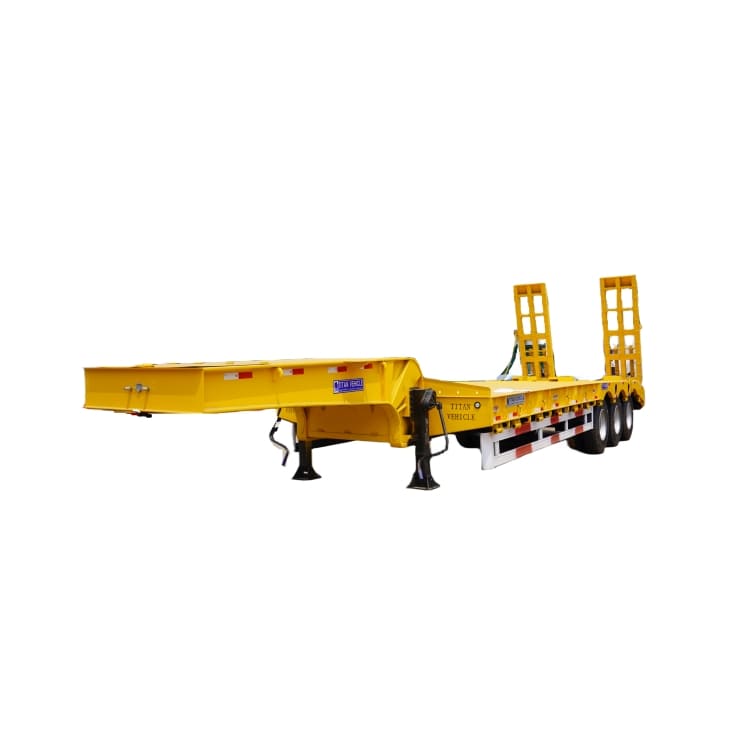

3 Axle 60 Ton Lowbed Trailers for Sale in Burundi

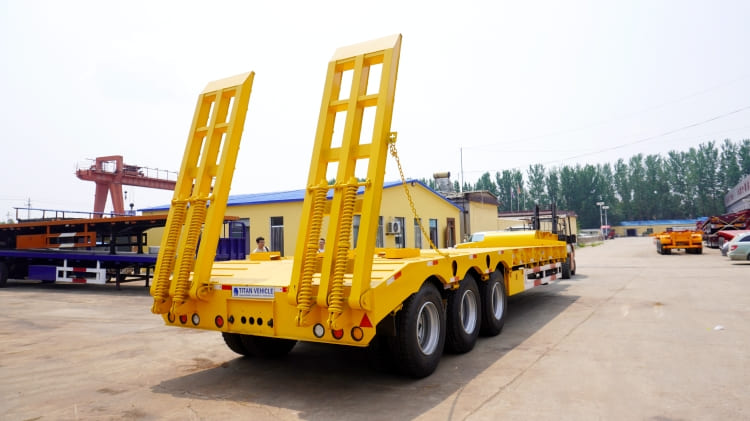

3 Axle 60 Ton Lowbed Trailers for Sale in Burundi

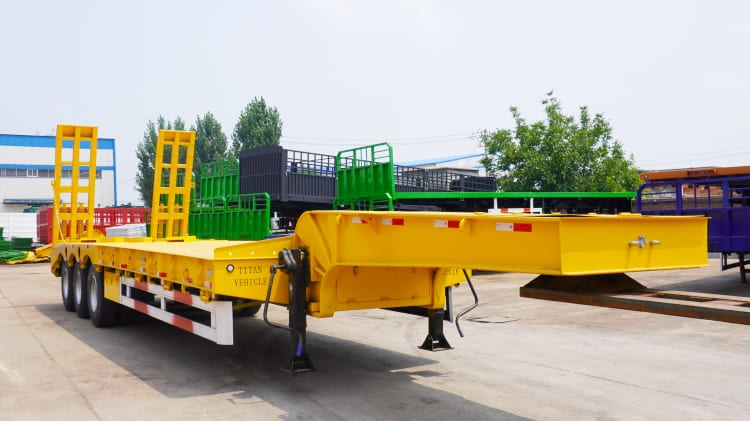

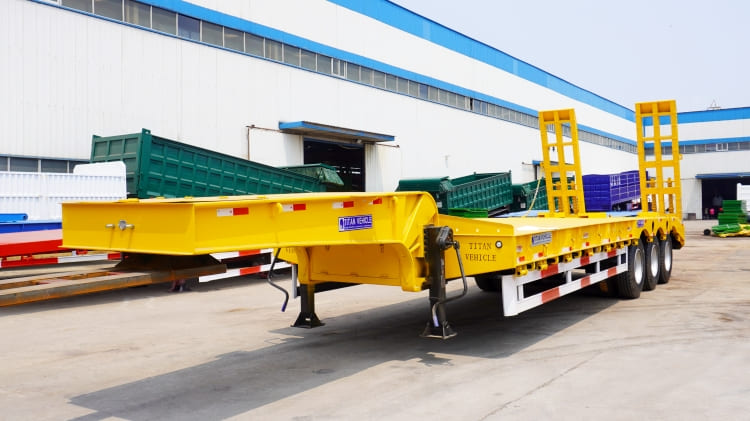

3 Axle 60 Ton Lowbed Trailers for Sale in Burundi

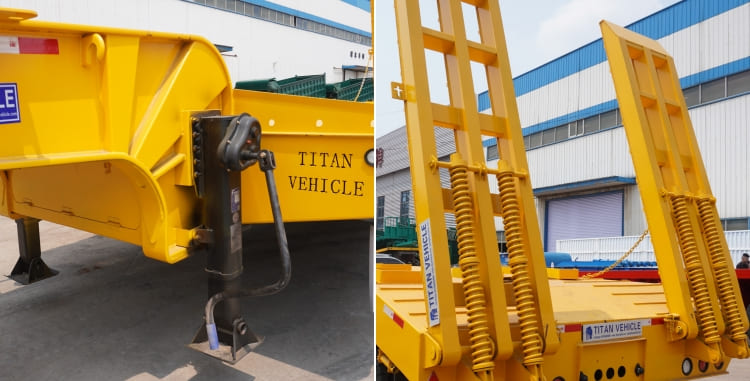

JOST Landing Gear and Spring Ladder of 3 Axle 60 Ton Lowbed Trailers

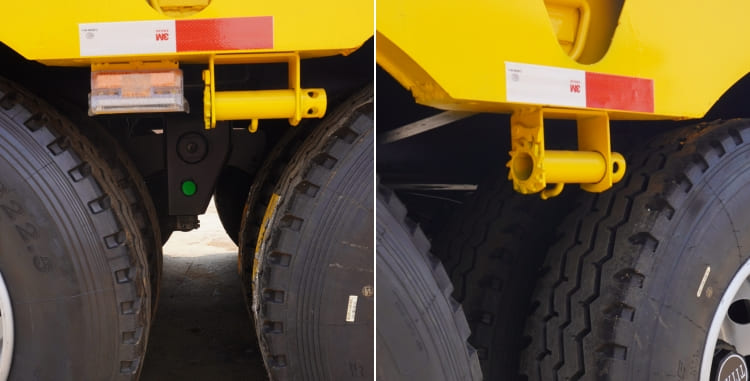

Rope Tensioner and Suapension of 3 Axle 60 Ton Lowbed Trailers
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons
Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

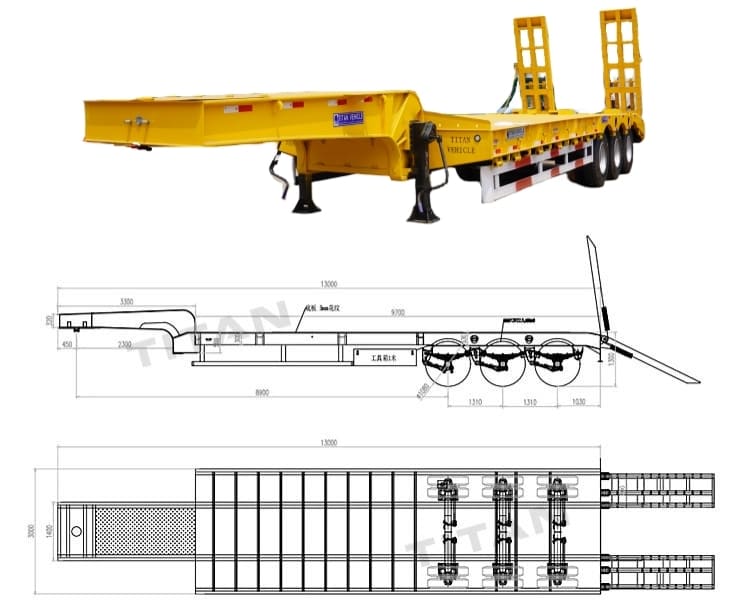

Drawing of 3 Axle 60 Ton Lowbed Trailers
